DUBF Series
DUBF Series
• Professional 8-channel multi D-Sub connecting cable
• OD 13mm 8P multi cable D-SUB – XLR-F×8
• OD 13mm 8P multi cable D-SUB – XLR-F×8
Model | Length |
DUBF-6 | 6FT |
DUBF-10 | 10FT |
DUBF-15 | 15FT |
DUBF-20 | 20FT |
XLR Pin Configuration Female
l Pin 1: Ground / Shield 〔Not Connected to XLR Case Tap〕
l Pin 2: Hot〔+〕
l Pin 3: Hot 〔-〕

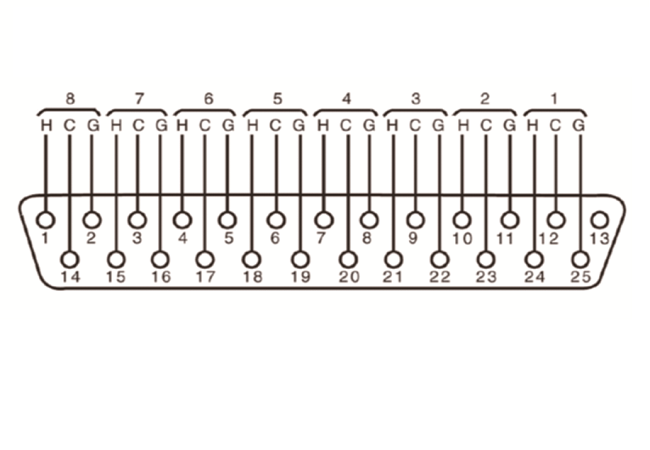

D-SUB 25 PIN 8 CHANNEL CONFIGURATION
